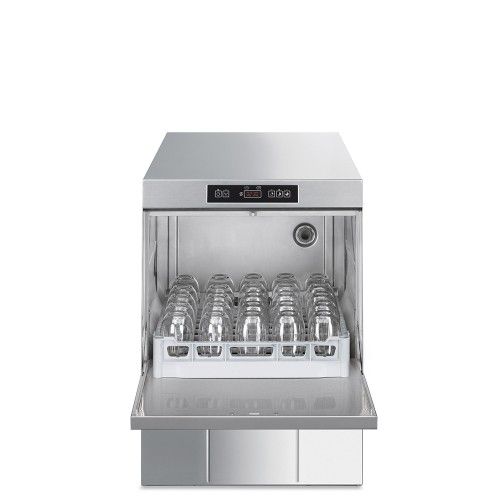

Undercounter dishwasher with 500 basket size and 3 wash programmes

The Smeg Ecoline SPG505UK is a smart single skin economical glasswasher which is robust and reliable, giving sparking results with every wash. With the option of an integral water softener

Product details:

• Outside dimensions (WxDxH): 578x600x814mm
• Total power installed: 400V 3N 50 Hz / 5.7kW - 230V 1N 50Hz / 5.7kW - 230V 1N 50Hz / 4.0kW - 230V 1N 50Hz / 2.4kW
• Structure: AISI 304 stainless steel with single-skinned
• Basket dimensions: 500x500 mm    Baskets per hour: 40 / 24 / 15
• Number of programs: 3 - 90, 150 or 240 seconds
• Thermo-acoustic insulation door
• Rinse aid dispenser:
• Peristaltic pump with electronic adjustment
• Detergent dispenser
• Peristaltic pump with electronic adjustment
• Useable loading height: 365 mm
• Wash tank capacity: 13L
• Boiler capacity: 6L
• Boiler heating element: 5 kW
• Integral water softener option
• Wash tank heating element: 2.0 kW
• Wash pump with 'Soft start' system
• Wash pump: 0.7 kW
• Atmospheric boiler and rinse pump (HTR system)
• Drain system: Automatic drain pump with partial water exchange in the wash tank
• Filtering system: Integral plastic tank filter with double stage filtration in the sump and additional micro filter for pump protection
• Water consumption per cycle: 3.2L Wash and Rinse arm: 2 x combined wash and rinse arm with quick release system
• Insulated double skinned door
• FRESH WATER function for complete wash tank water replacement after each wash cycle
• EXTENDED-RINSE function for a prolonged rinse
• Thermostop for controlling the rinse water temperature
• Self-diagnosis system with fault warning
• Moulded basket guides
• Drain pipe on the boiler for complete drainage
• ‘Stand-by’ function of the heating elements during periods of non-use
• Moulded tank with rounded corners
• Self cleaning cycle available as standard
• Automatic partial replacement of water in the wash tank by drain pump between wash and rinse cycle
• 12 month warranty
• Specification sheet here

• Product Code: SPG505DUK -  Undercounter Glasswasher; 3 Wash Programs / 500x500 / 5.7kW 25A 1ph.

  Please telephone or email for stock availability and lead times.

.
